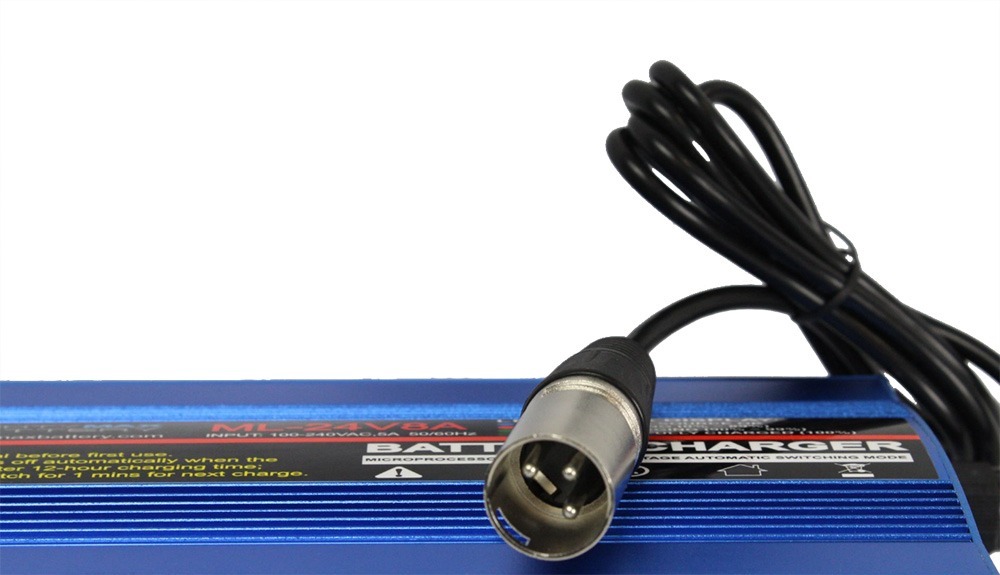

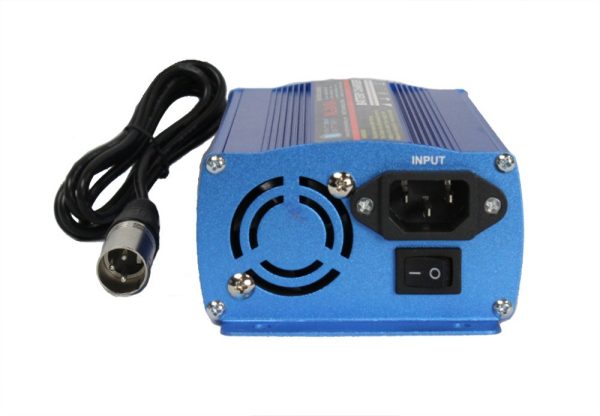

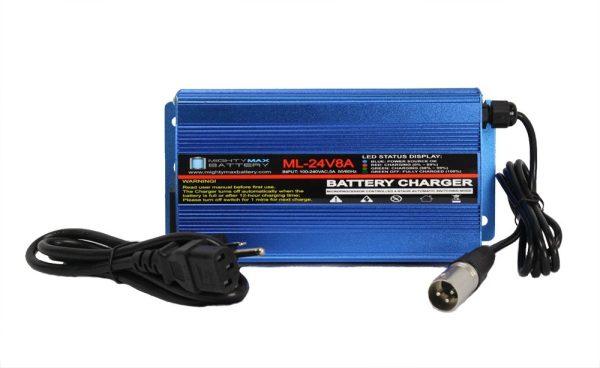

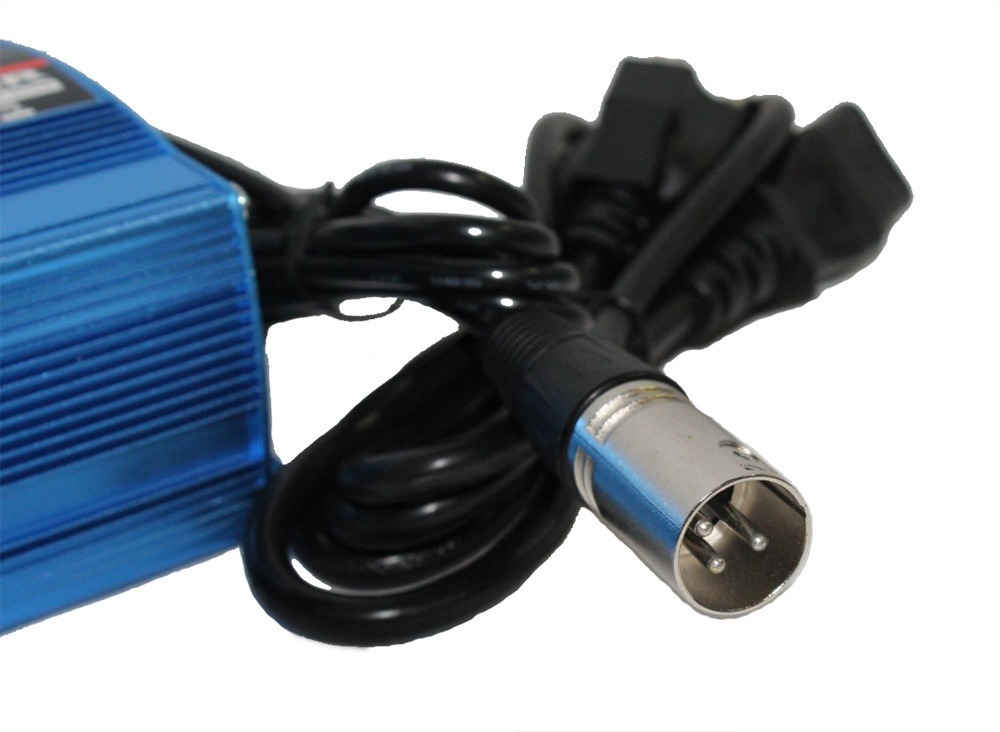

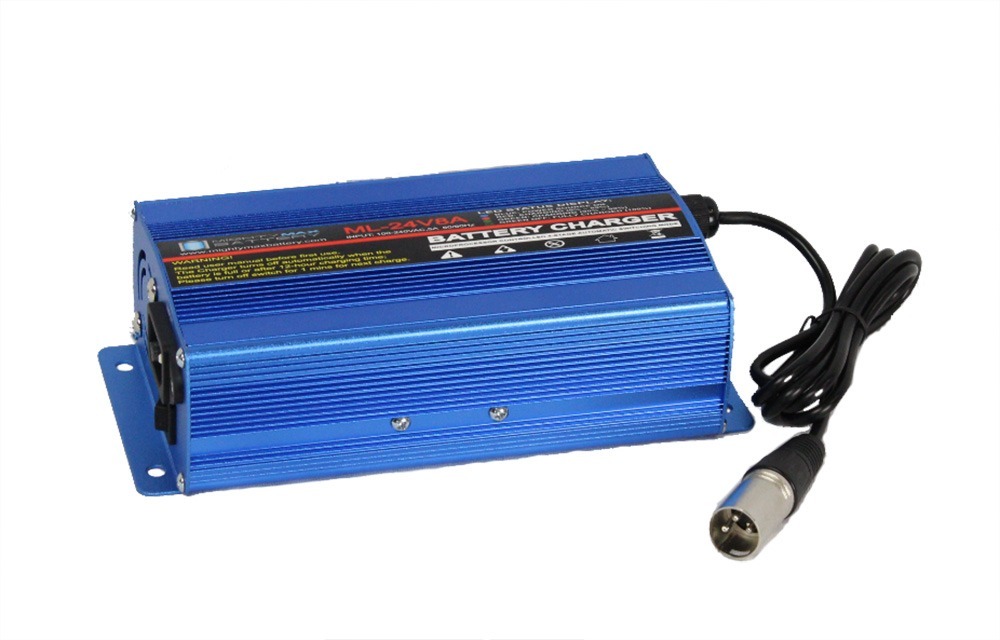

The Mighty Max automatic smart wheelchair battery charger comes with the round 3 pin XLR connector. The Mighty Max Charger provides an enhanced charging method that will not damage your batteries when left connected. Mighty Max 24V 8A charger also provides a short circuit protection, enabling the product to charge safely in most environments. Mighty Max 24V 8A charges 24V lead acid and Gel cell type Batteries. Most common use with the following wheelchairs: Pride Mobility, Hoveround, Freedom, DDC, Shoprider, E-Scooter Electra, Frank Mobility, Merits Health Products, Theradyne and many more.
Features;
Mighty Max 24 Volt 8 Amp charger with 3 pin XLR connector
Short Circuit protection to ensure a full charged battery
Enhanced charging method to ensure the battery does not over charge
Charges both SLA and GEL Cell batteries
Color LED Status Indication to show the operation of the charging progress
Specifications;
AC Input: 100-240Vac, 50-60Hz, 3.0-1.0A
DC Output: 24V Rated (28.9V Max.), 8A Max.
Operating Temperature: 0 C – 40 C (30F – 104F)
Indicator Functions;
Blue: Power source okay
Red On: Charging (0% ~ 89%)
Green On: Charging (90% ~ 99%)
Green Off: Fully Charged (100%)
