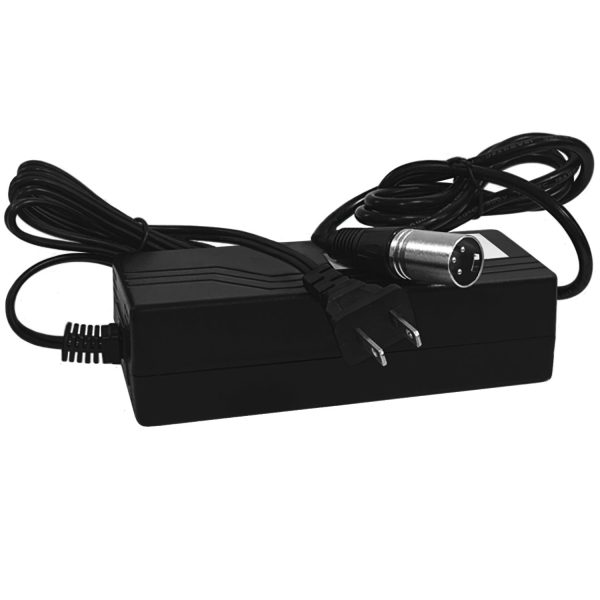

The Mighty Max 3 stage automatic smart wheelchair battery charger comes with the round 3 pin XLR connector. The Mighty Max Charger provides an enhanced charging method that will not damage your batteries when left connected. Mighty Max 24V 3A charger also provides a short circuit protection, enabling the product to charge safely in most environments. Most common use with the following wheelchairs: Pride Mobility, Hoveround, Freedom, DDC, Shoprider, E-Scooter Electra, Frank Mobility, Merits Health Products, Theradyne and many more.
Features;
Mighty Max 24 Volt 3 Amp charger with 3 pin XLR connector
3 stage charging method ensuring full charge, avoiding over-charging
Float charge to ensure the batteries life
Temperature / Short Circuit protection

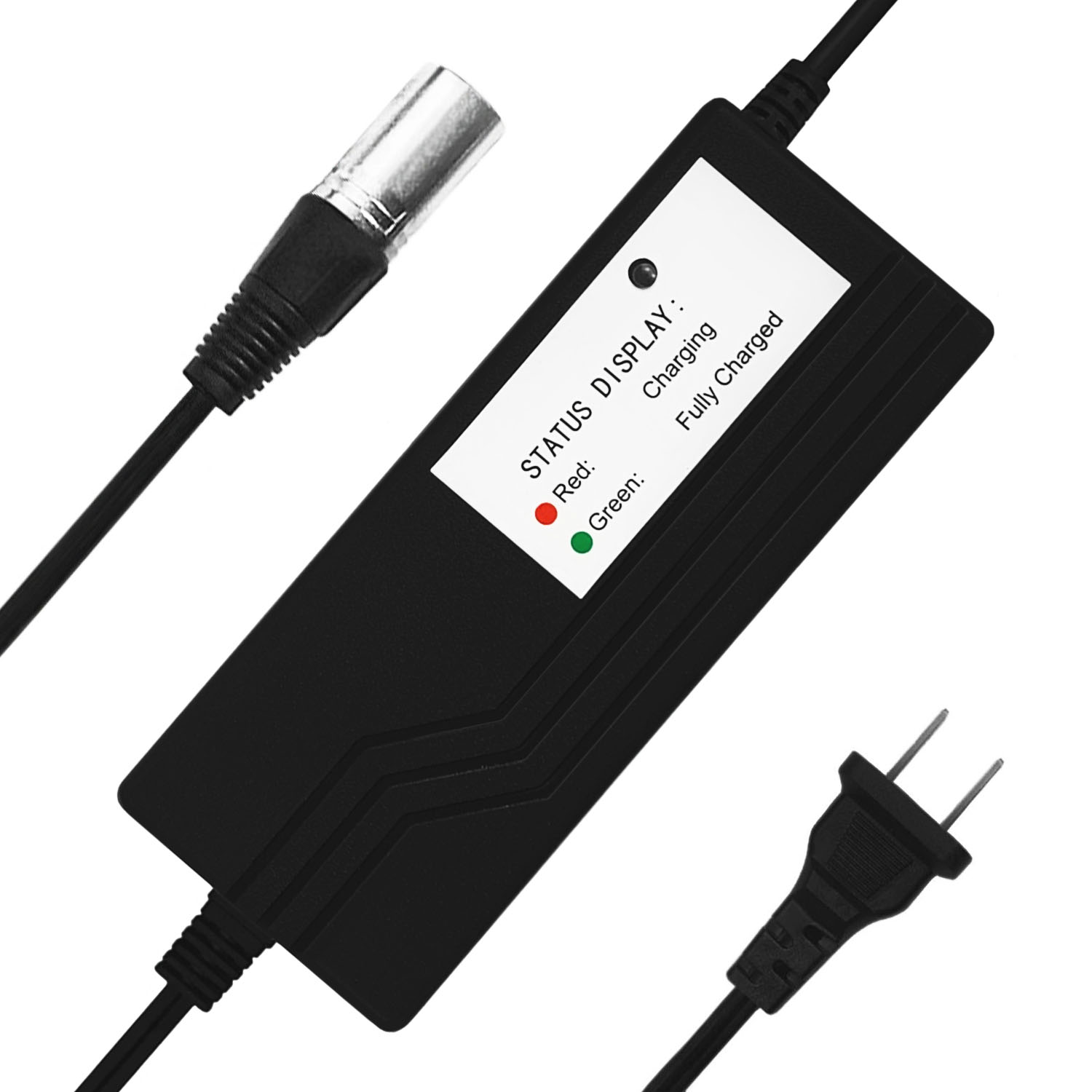

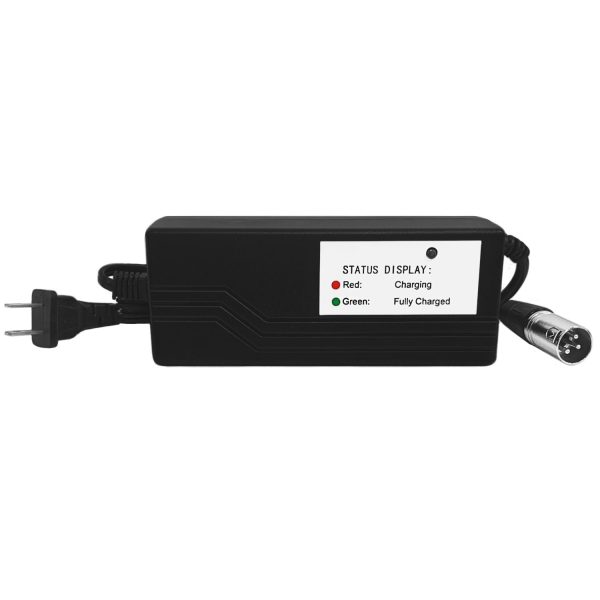

Dual color LED – showing operation of charging progress
3 Stage Advanced Charging;
Phase 1: Constant charge
Phase 2: Constant voltage
Phase 3: Float Charging
Specifications;
AC Input: 110-265Vac, 50-60Hz,
DC Output: 29.2V (28.8 – 29.6V);
Operating Temperature: -10C – 40C

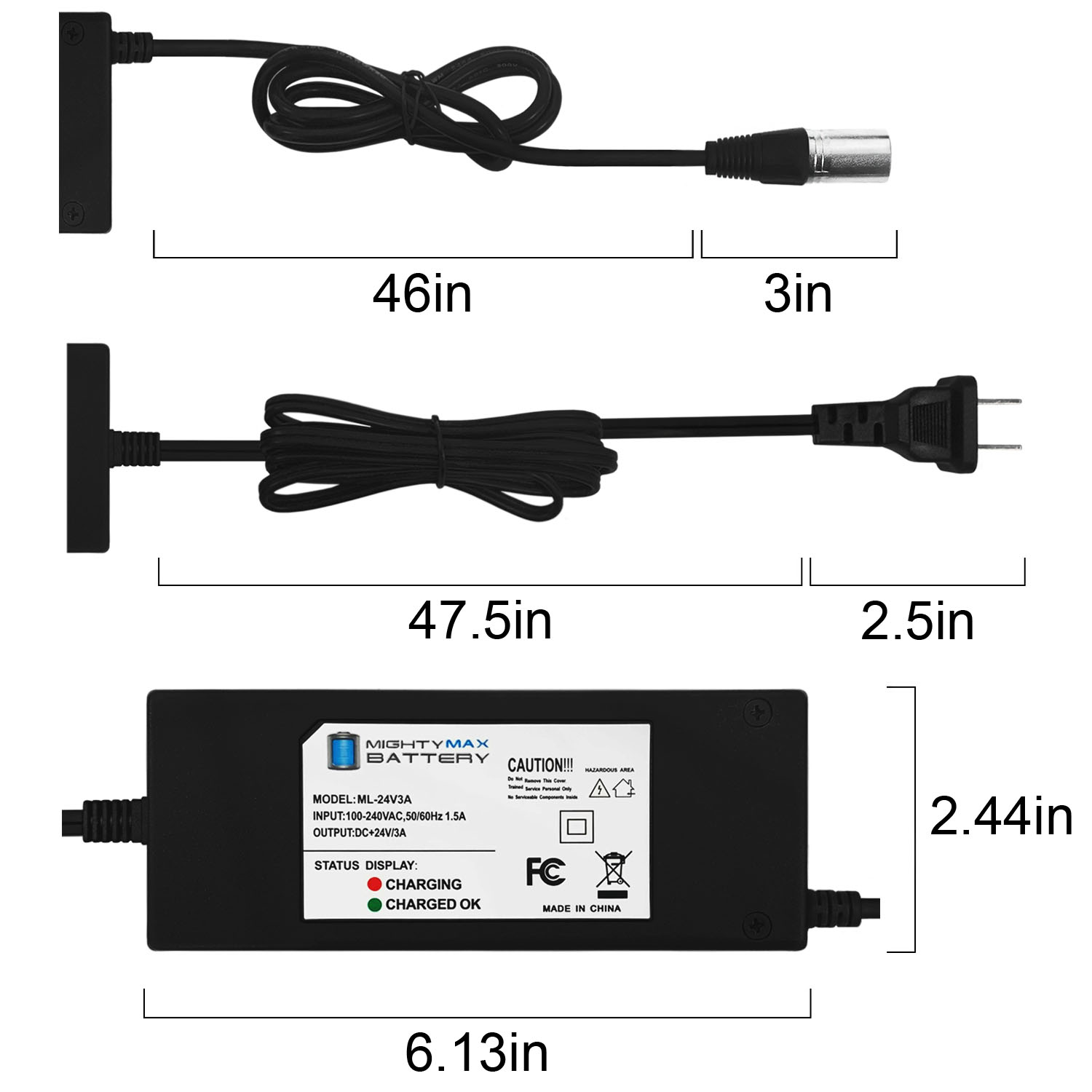

Dimensions: 4.53 x 2.46 x 1.36
LED Indicator;
Green On: Power on, No Battery
Red On: Charging
Green On: Charging Finished, Trickle On
Green Flash: Battery Reverse Protection
Web Customer –
Charged the gel batteries at the proper rate so as not to cause cell damage. Too high a charging rate can shorten the battery life. I found this out the hard way. — 3 pair of batteries were charged at about 4.5 amps and would not operate the electric mobile chair to any time — $$$$$
Customer –
Charged the gel batteries at the proper rate so as not to cause cell damage. Too high a charging rate can shorten the battery life. I found this out the hard way. — 3 pair of batteries were charged at about 4.5 amps and would not operate the electric mobile chair to any time — $$$$$
chauncey2 –
I bought this to use in my Hyundai Santé Fe OEM 110 AC equipped outlet in the rear of vehicle. I use it to charge my GO GO Elite scooter. It fast charges the BIG amp batteries while driving in almost half the time of the 2 amp.Highly recommend & it also has the over charge protection !!!!
Rita Gardner –
was going to return because I thought it was defective, found out the brand new Batteries were Bad. Charger is working great
anita anastasi –
It worked very well. Perfect Battery!
vieille_ame58 –
I brought another charger that overheated and I was afraid to use it but not this Mighty Max. It hasn’t overheated and haa a green indicator that tells you when the batteries are fully charged so you know when the charging is finished. If your lucky enough to get the batteries then you have a winning combo.
vieille_ame58 –
I brought another charger that overheated and I was afraid to use it but not this Mighty Max. It hasn’t overheated and haa a green indicator that tells you when the batteries are fully charged so you know when the charging is finished. If your lucky enough to get the batteries then you have a winning combo.
rick –
works well for charging my scooter/wheelchair, the cooling fan is a littles noisy for me at night.
